¡@¡@¡@¡@¡@¡@< QRII-Type top >

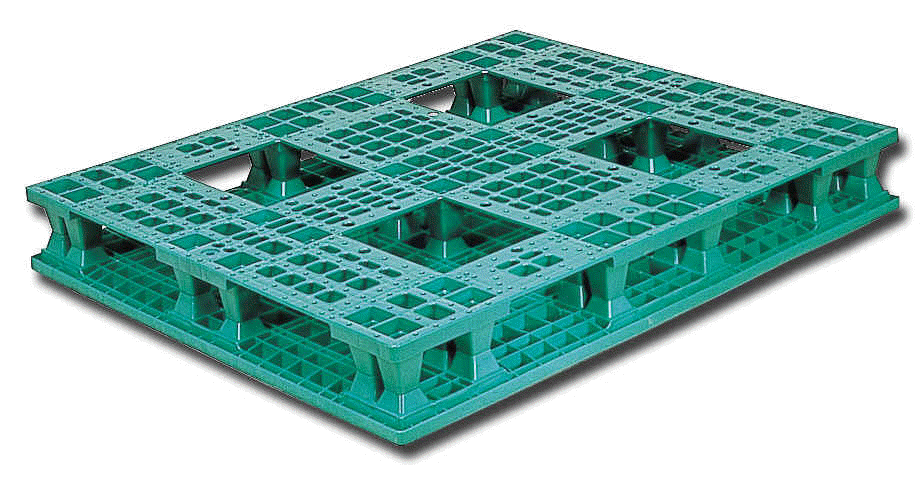

¡@ < QRII-Type bottom >
|
QRII - Type |
|
|
|
|
¡@¡@¡@¡@¡@¡@< QRII-Type top > |
¡@ < QRII-Type bottom > |
|
¡±Feature: Single flat deckboard, non-reversible, four-way entry, heavy load capacity. |
QRII-Type Specification |
|||
Item |
Size
(inch) |
Rack loading (max_kg) |
Dynamic loading (max_kg) |
| QRII-4440C |
44 X 40 X 6.2 |
800 | 1000 |
| QRII-4440D |
44 X 40 X 6.8 |
1000 | 1500 |
| QRII-4442C |
44 X 42 X 6.2 |
800 | 1000 |
| QRII-4442D |
44 X 42 X 6.8 |
1000 | 1500 |
| QRII-4444C |
44 X 44 X 6.2 |
800 | 1000 |
| QRII-4444D |
44 X 44 X 6.8 |
1000 | 1500 |
| QRII-4640C |
46 X 40 X 6.2 |
800 | 1000 |
| QRII-4640D |
46 X 40 X 6.8 |
1000 | 1500 |
| QRII-4642C |
46 X 42 X 6.2 |
800 | 1000 |
| QRII-4642D |
46 X 42 X 6.8 |
1000 | 1500 |
| QRII-4644C |
46 X 44 X 6.2 |
800 | 1000 |
| QRII-4644D |
46 X 44 X 6.8 |
1000 | 1500 |
| QRII-4646C |
46 X 46 X 6.2 |
800 | 1000 |
| QRII-4646D |
46 X 46 X 6.8 |
1000 | 1500 |
| QRII-4840C |
48 X 40 X 6.2 |
800 | 1000 |
| QRII-4840D |
48 X 40 X 6.8 |
1000 | 1500 |
| QRII-4842C |
48 X 42 X 6.2 |
800 | 1000 |
| QRII-4842D |
48 X 42 X 6.8 |
1000 | 1500 |
| QRII-4844C |
48 X 44 X 6.2 |
800 | 1000 |
| QRII-4844D |
48 X 44 X 6.8 |
1000 | 1500 |
| QRII-4846C |
48 X 46 X 6.2 |
800 | 1000 |
| QRII-4846D |
48 X 46 X 6.8 |
1000 | 1500 |
| QRII-4848C |
48 X 48 X 6.2 |
800 | 1000 |
| QRII-4848D |
48 X 48 X 6.8 |
1000 | 1500 |
